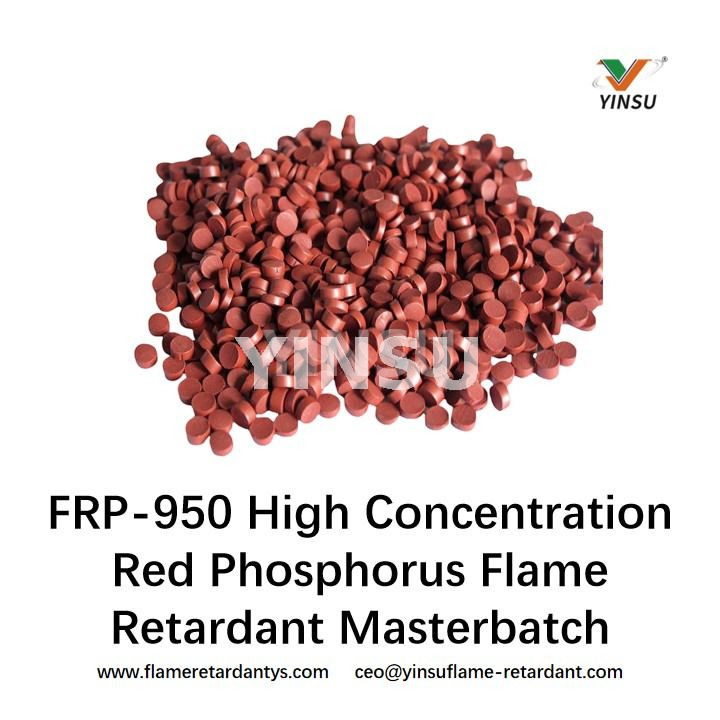

High Concentration Red Phosphorus Flame Retardant Masterbatch FRP-950
I. Introduction
FRP-950 series is a flame retardant masterbatch with ultra-high red phosphorus content, mainly consisting of microencapsulated red phosphorus. Because of the high red phosphorus content, the additive volume in the plastic product is extremely small. Only 5%-9% flame retardant is added in the polyamide composite material, the flame retardance can achieve UL94-V0 (T2.0mm).

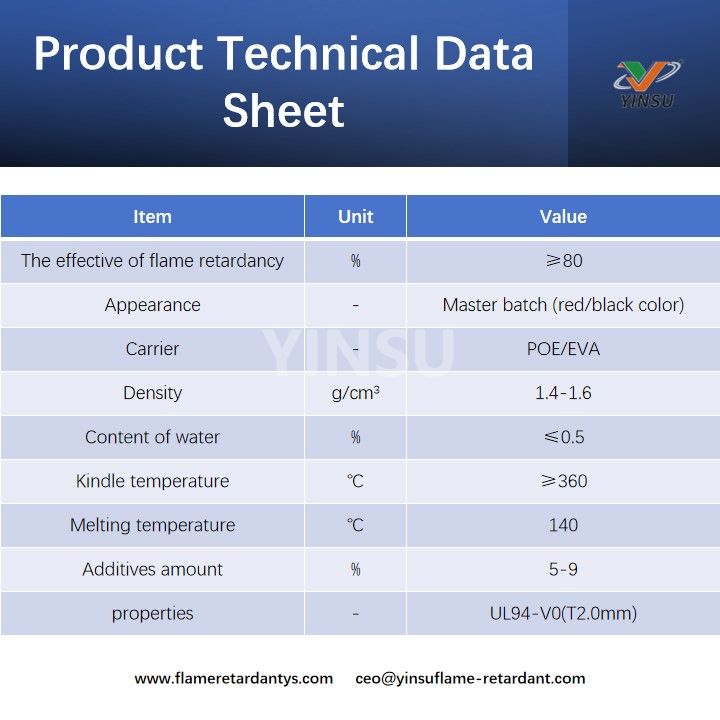

II. Product Technical Data Sheet
Item | Unit | Value |
The effective of flame retardancy | % | ≥80 |
Appearance | Master batch (red or black color) |
Carrier | POE / EVA |
Density | g/cm3 | 1.4-1.6 |
Content of water | % | ≤0.5 |
Kindle temperature | ℃ | ≥360 |
Melting temperature | ℃ | 140 |
Additives amount | % | 5-9 |
Properties | UL94-V0 (T2.0mm) |
III. Product Feature
1. High efficiency.
2. Excellent mechanical property.
3. Exclusive technology with new carrier.
4. Extra fine powder, small particles.
5. Ecological friendly: Non-halogen, reach RoHS requirement.
6. Low moisture absorption.
7. Easy handling.
8. Very low migration and glooming.
9. Can be used for printed circuit board.
IV. Package Storage & Transportation
1. Metal drum with inner PE bag, 18kg/drum.
2. Storage in cool dry place.
3. Transport as non-dangerous chemical product.
V. Application
It can be widely used for PET, HIPS, TPU, PPO, PE, PC, etc.

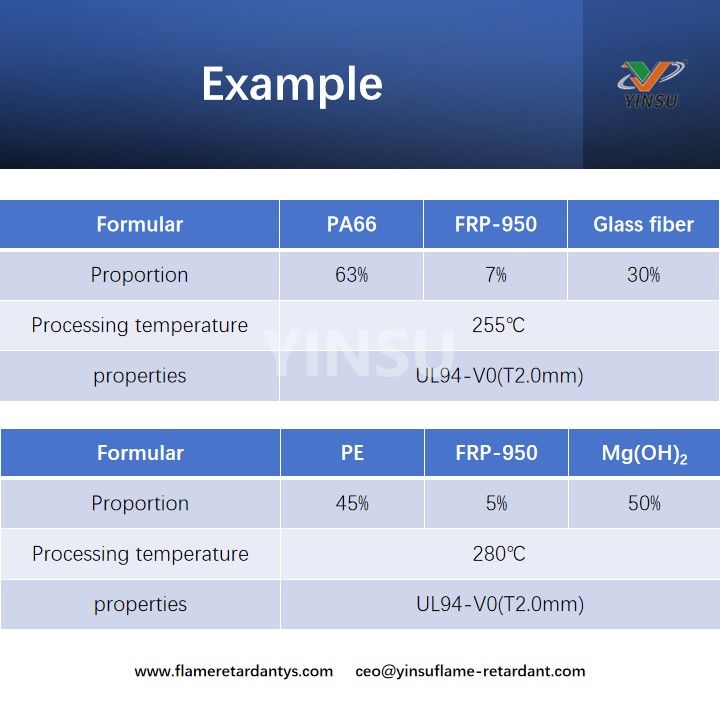

Examples
Formular | PA66 | FRP-950 | Glass Fiber |
Proportion | 63% | 7% | 30% |
Processing Temperature | 255℃ |
Properties | UL94-V0 (T2.0mm) |
Formular | PE | FRP-950 | Mg(OH)2 |
Proportion | 45% | 5% | 50% |
Processing Temperature | 280℃ |
Properties | UL94-V0 (T2.0mm) |
Note: Addition in the table is suggested. The suitable addition should be checked by test.
